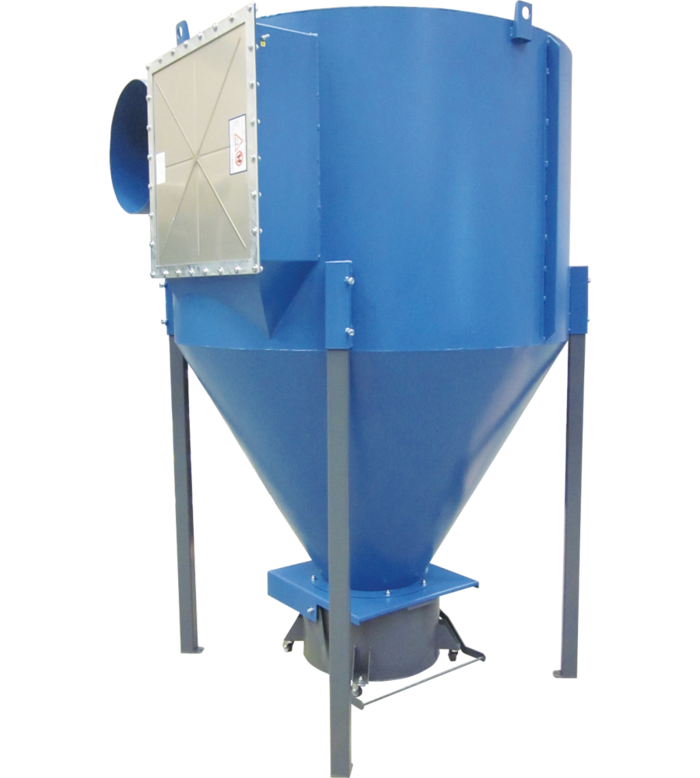

Cyclone CY-A

For application ini ATEX zone 20/21/22. As coarse separator before filter units or as fan protection you can advantageously use a cyclone of the type CY-A. For high vacuum the type CY-V-A can be used.

Under normal circumstances CY.A will separate sufficiently for reduction of ATEX-zones with one step on clean air side.

Product Features

Polluted air enters unit through tangential inlet on cyclone side top.
Particles are separated by cyclone effect and fall down along cyclone side and are collected in dust container in unit buttom.
Dust container is suspended and emptied by Gram Quicklock-adjustable suspension.
The clean air is led out by connection in unit top.
Explosion membrane placed on unit inlet side.

Product Highlights

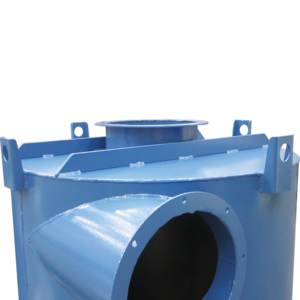

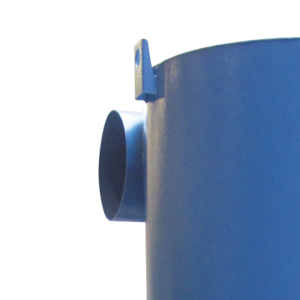

Standard inlet in left side. Option available in right-hand side

Optional inlet

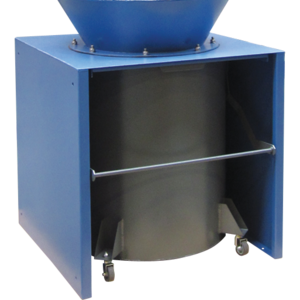

Is available with either a 72L/67L or 150L/145L dust container

Dust collection

Cyclone separator type CY-B-A is available for larger quantities of material

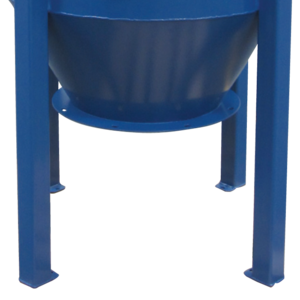

Discharge Bigbag

Equipped with JKF flange for easy connection

High vacuum

Unit is standard dimentioned for KST 300bar m/sec. and Pmax 10bar (similar to ST2).

Capacities

CY-A		CY-V-A
Air volume:	500 - 30,000m³/h	Air volume:	1,000 - 8,000m³/h
Vacuum:	Up to 5,000Pa	Vacuum:	Up to 40,000Pa
Rise velocity (immersion tube):	Approx. 20m/s	Rise velocity (immersion tube):	Approx. 20m/s

Cyclone separator as pre-separator ensures better filter performance

For separation of certain material types/chips or at larger material volumes you can advantageously use a cyclone as pre-separator. Cyclones can either be placed close to the pollution source (hereby piping wear is reduced) or just before filter unit.

Through coarse separation by a cyclone the filter material load is reduced, whereby operating costs are lowered. Further it is possible to pre-separate heavier waste for recycling or safe disposal.

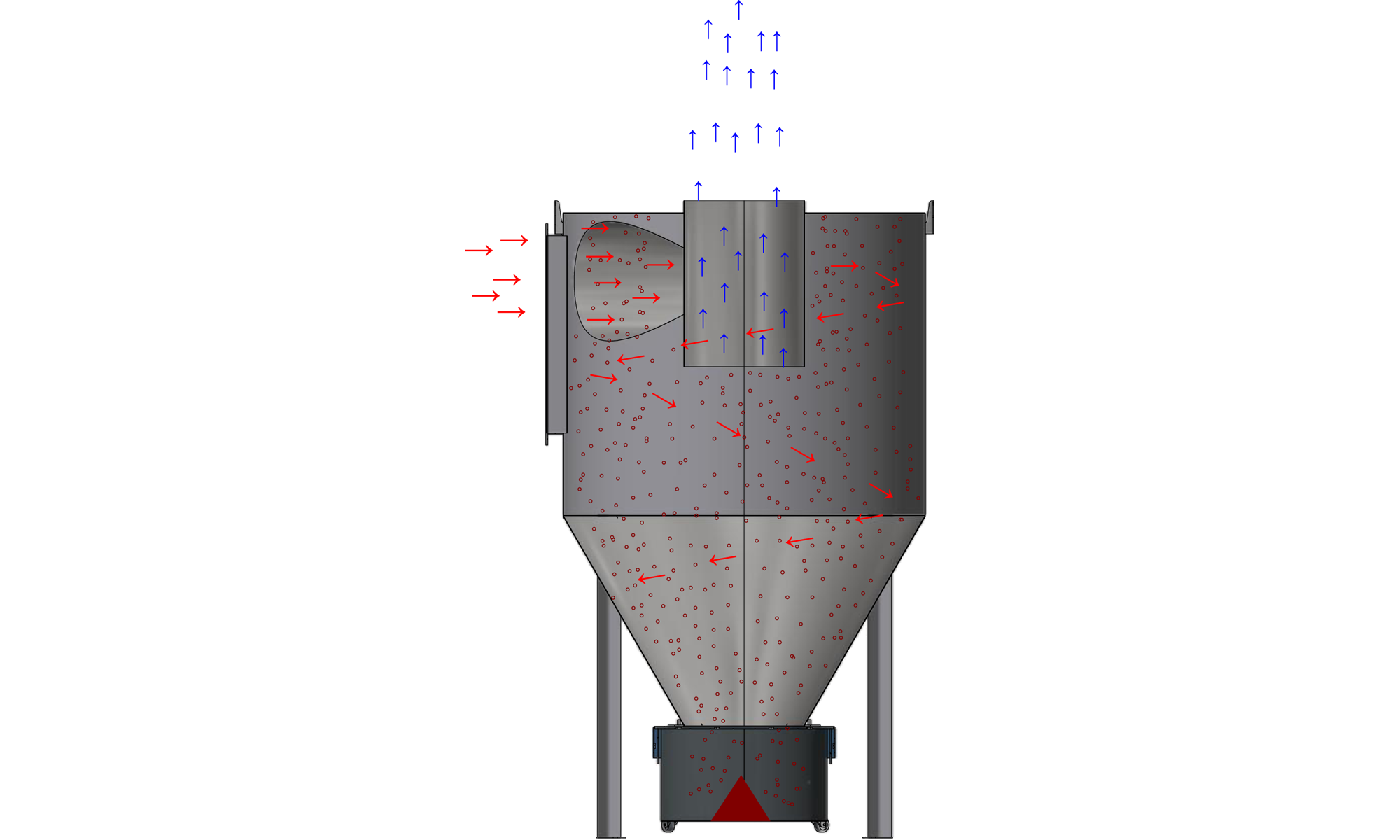

CYA_IMG_FLOW — Principle ticking for flow through cyclone separator type CY-A/CY-V-A

Construction/surface:

Filter cabinet is made in 2mm black steel plate
Surface powder enamelled RAL 5007/7011 structure

Also available

Version in hot-galvanized, enamelled steel plates for outdoor mounting
Sack holder for 72L/67L-dust container
Dust container 150L/145L-dust container
Underframe and connections for bulk bag and drop pipe for customer specific containers (see sketch next page)
Underframe for bulk bag enlargement, shielded by door and micro-switch

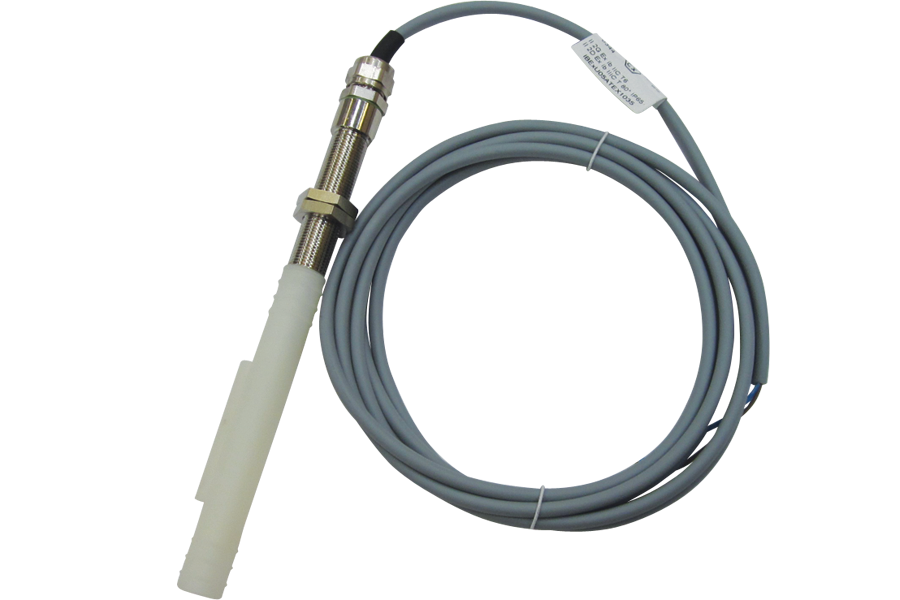

Rupture sensor type GMG12000K

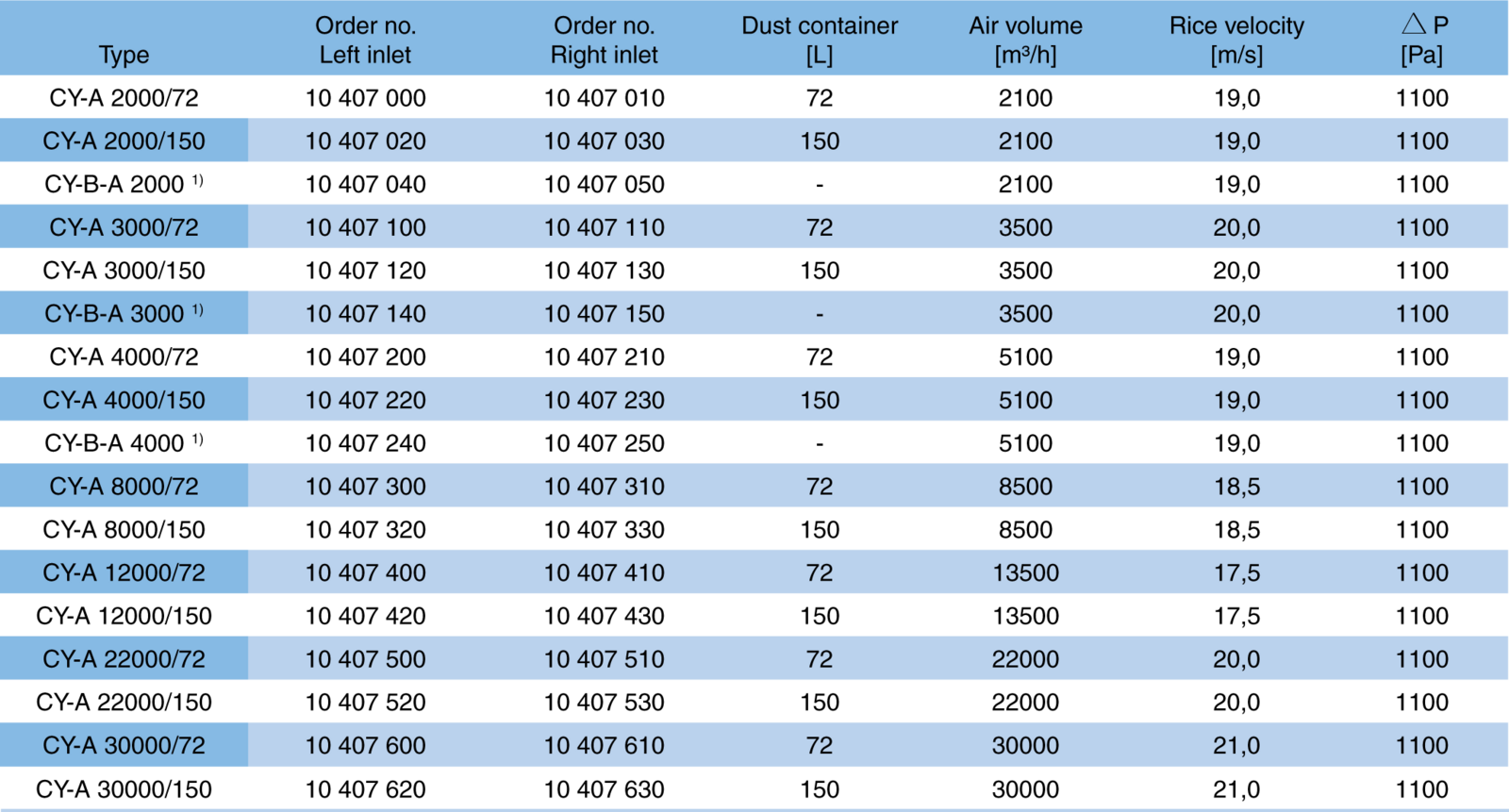

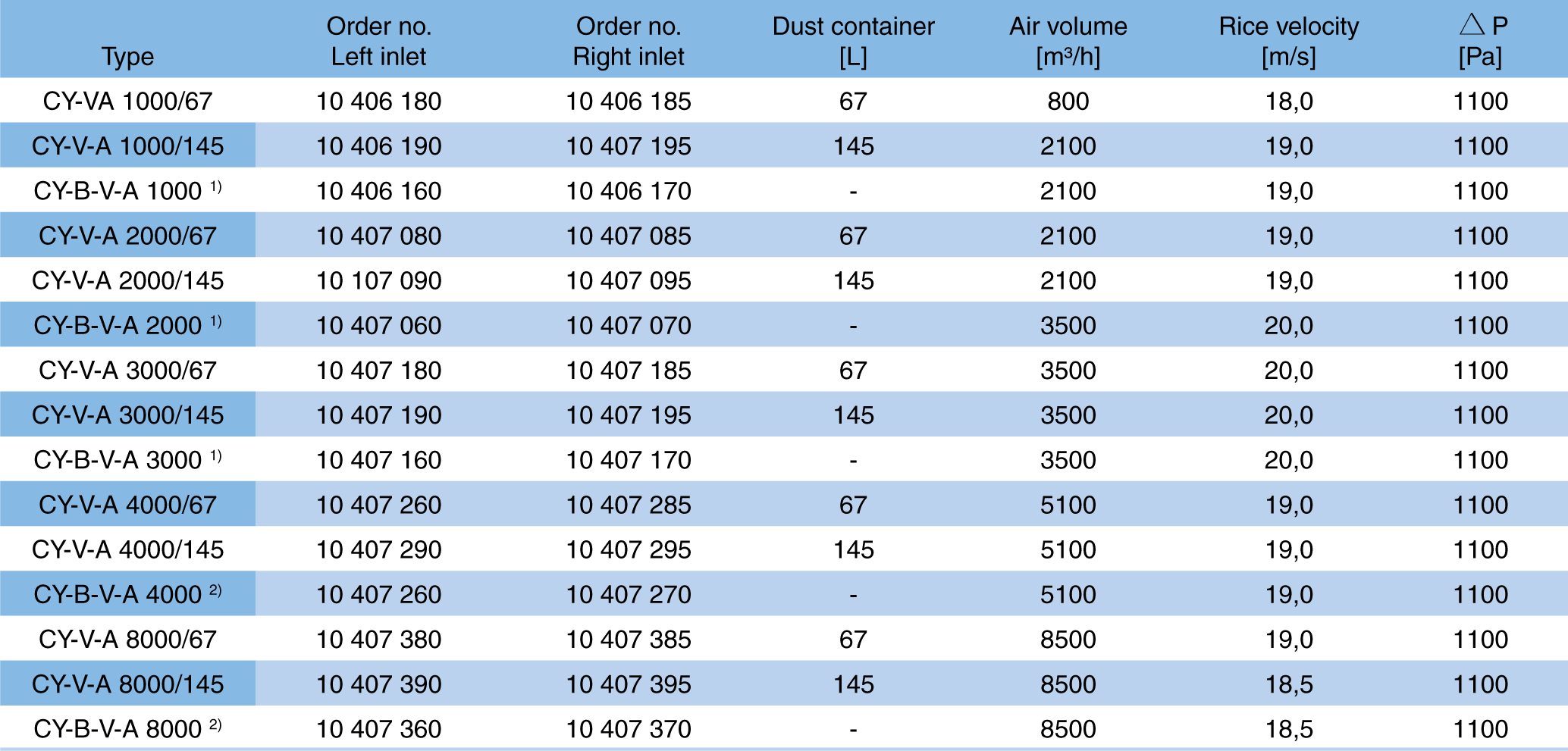

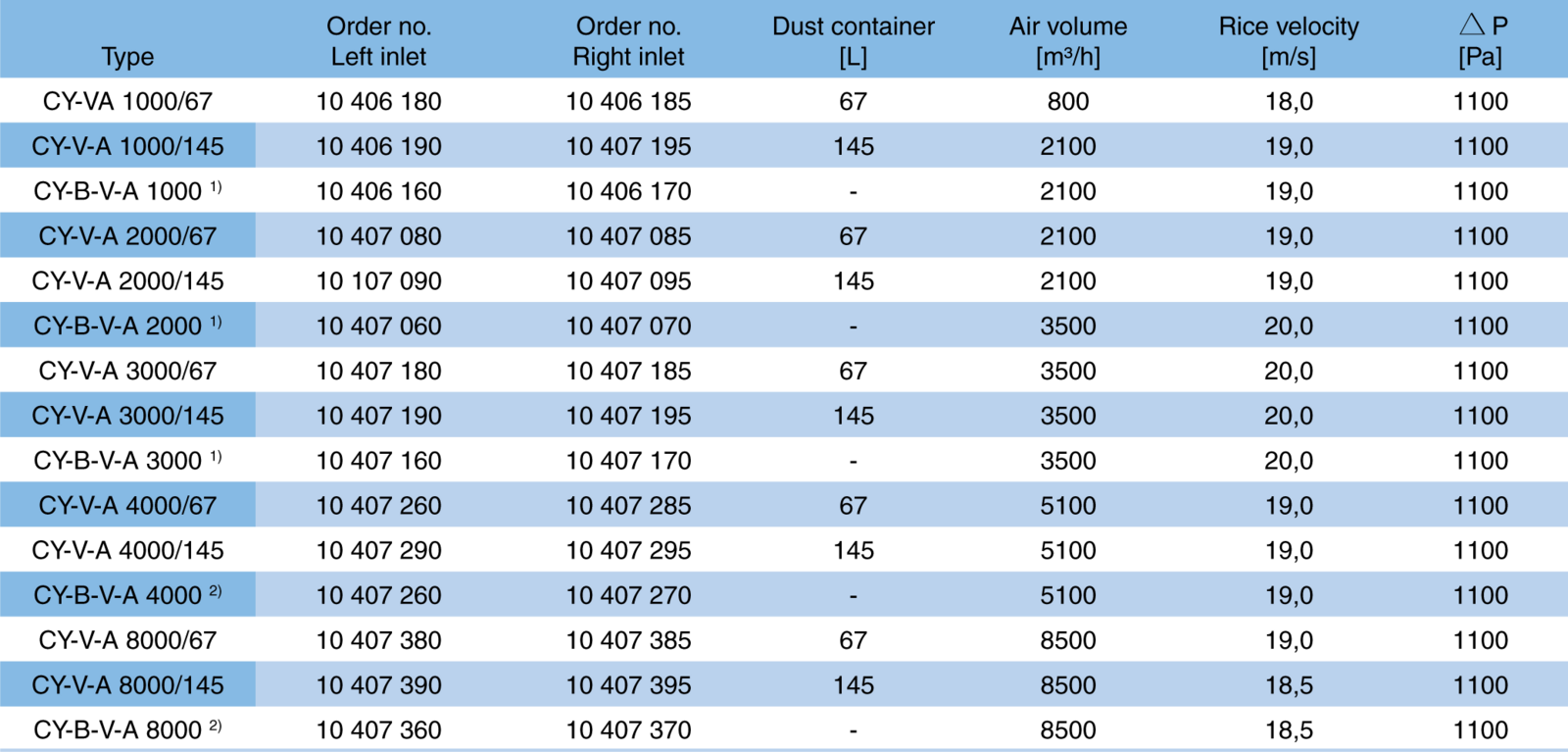

Cyclone type CY-A/CY-V-A is available in the sizes as stated in the forms below.

Please, contact us for assistance in selecting the optimal unit taking into consideration air volume, dust type and volume, operation times etc.

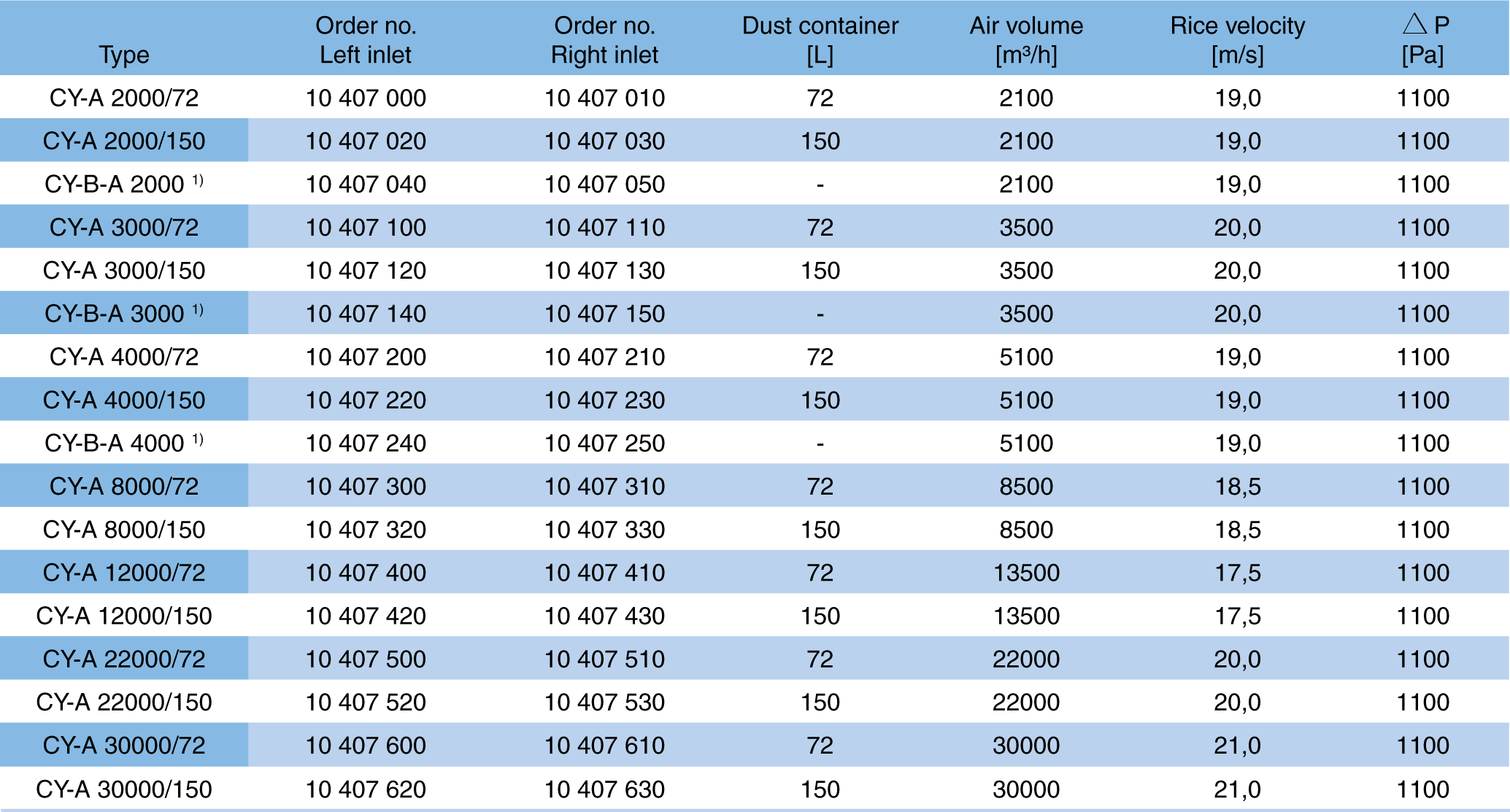

Cyclone separator type CY-A (max. 5,000Pa)
