Extraction arm RGF-A

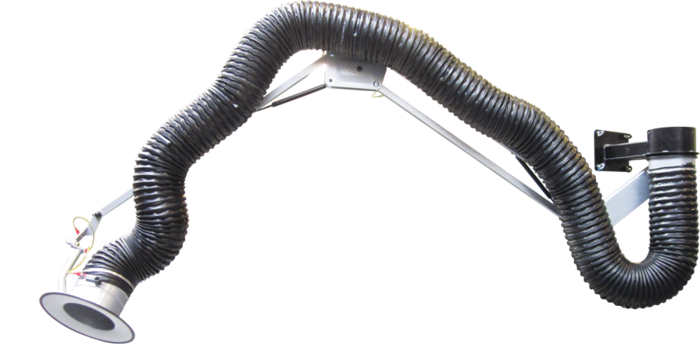

Extraction arm type RGF-A for application in ATEX-zone 21/1 (2D/2G). Suction arm for welding and soldering smoke, dust, aerosoles and fumes. Wide movement pattern, can revolve 360°.

Arm made with earth cable for earthing after mounting. Tested for electrical resistance. Hood with damper and fabrik rubber. Hose brackets in plastic. Special hose for ATEX-zone 21/1.

RGFA_IMG_RGF-A3000
SLIDE510X339_0038
SLIDE510X339_0040
SLIDE510X339_0044
Product Features
  • Very easy-to-move suction arm with wall fittings
  • Wide movement pattern
  • RGF-A can rotate freely with reliefed hose
  • Supplied with wall fittings
  • Flow technical optimized hood
  • External bar system provides better flow and less wear
  • Length 2-4m are connected with nipple to channel
  • Length 5-9m are connected with hose to channel
Product Highlights
RGFA_HIGHLIGHT1
Wall fitting with earthing cable
Wall fitting
RGFA_HIGHLIGHT2

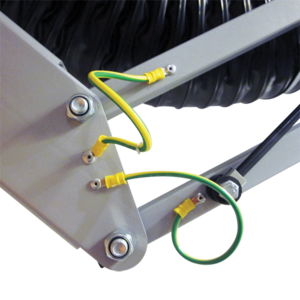

Elbow with earthing cable for parallelogram
Bow
RGFA_HIGHLIGHT3

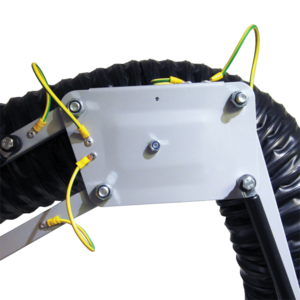

Intermediate plates for top joint with relief cables
Joint
RGFA_HIGHLIGHT4

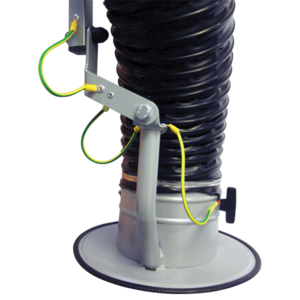

Additional hopper joint and outer arm connected with earthing cables
Funnel
Further data
RGFA_ILLU_RGF-A-Marking_EN
  • Extraction arm made in robust powder enamelled steel construction.
  • Very easy-to-move suction arm with wide movement pattern, can rotate freely 360°.
  • Equipped with wall fittings with self-lubricating revolving joint.
  • Fan can be mounted directly on this extraction arm.
  • RGF-A are available in the following hose diameters: ø100, ø125, ø160mm, and ranges from 2-9m.
  • RGF-A 4000E and RGF-A 5000 are delivered with extension arm/single swing arm.
  • RGF-A 6000/7000/8000/9000 are delivered with extension arms/double swing arm that can be folded totally against the wall.
  • The RGF-A-arm is constructed with external bar system.
  • This reduces wear, increased air flow and makes service and adjustment.

Joints, hood and hose are all earthed!

  • The arms are made especially made for ATEX-zone 21/1 and equipped with ATEX-certificate from factory.
  • Pressure loss table etc. see brochure page.
