Reel HOSR

Reel in user-friendly ergonomic model for storage of high-vacuum hose for vacuum cleaning or hand tool extraction.

User-friendly and ergonomic solution for storage of high-vacuum hose for cleaning or hand tool extraction.

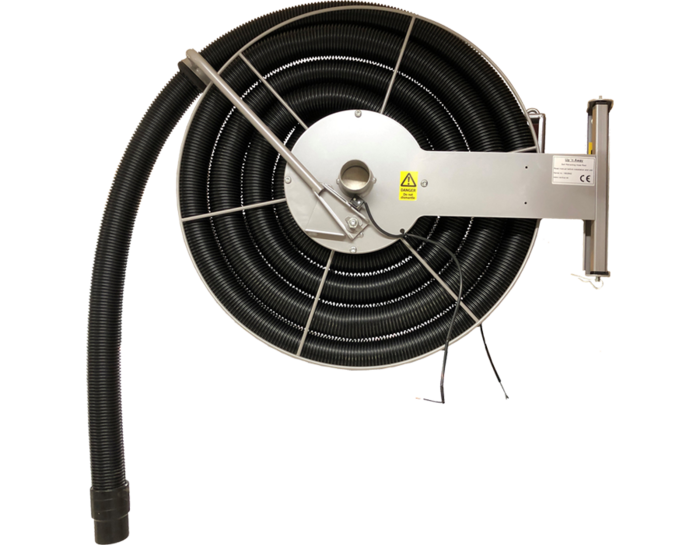

HOSR_IMG_HOSR
SLIDE510X339_0006
SLIDE510X339_0044
SLIDE510X339_0058
SLIDE510X339_0062
SLIDE510X339_0078
Product Features
  • Spring-driven reeling
  • Pivotal wall fitting, approx. 90°
  • Adjustable hose stop for hose arm activation
  • Integrated closing damper that opens at hose hose pull
  • Micro-switch for start/stop activated by hose arm
  • Channel connection by hose connection ø50mm
  • Anti-static hose: 10,000 ohm/m
  • Incl. anti-static screw muff MUHO-050-050: 10,000 ohm
  • Surface: RAL 9022
Easy mounting, connection and application

Hose hangs weight-relieved and does not come into contact with the floor. Hereby the total weight to be lifted is reduced and the hose life is extended as it does not wear to the floor.

HOSR_ILLU_HOSR_Explanation_EN
Further options
  • Ceiling fitting ceiling suspension
  • 1-3m extension arm with integrated pipe for extraction

See also brochure page for equipment for reel type HOSR.

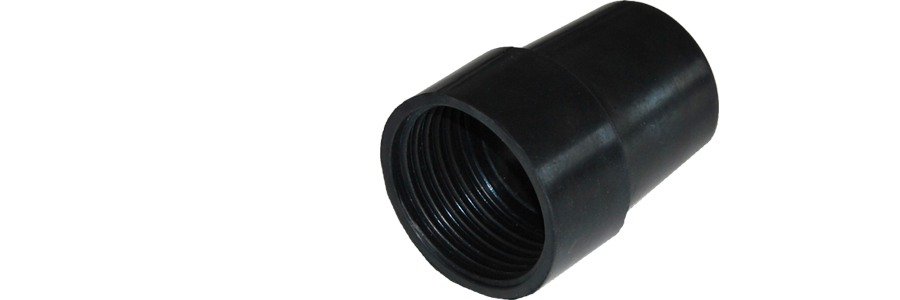

HOSR_IMG_HOSR_MUHO
Screw muff type MUHO
HOSR_Drawing_ABC-Illustration
TypeItem no.A
[mm]		B
[mm]		C
[mm]		D
[mm]		Hose length
[mm]		Weight
[kg]
HOSR08 266 000800240650507,3014
HOSR08 266 1009403006505010,020
