Side channel blower KMS

Side channel blower type KMS is used for continuous high-vacuum operation, e.g. in connection with Gram high-vacuum unit type HFU.

Side channel bloser is excellent as vacuum pump for cleaning tasks as well as high-pressure extraction from hand-held machines. Intended for transport of clean air. Transport air is also used for cooling air.

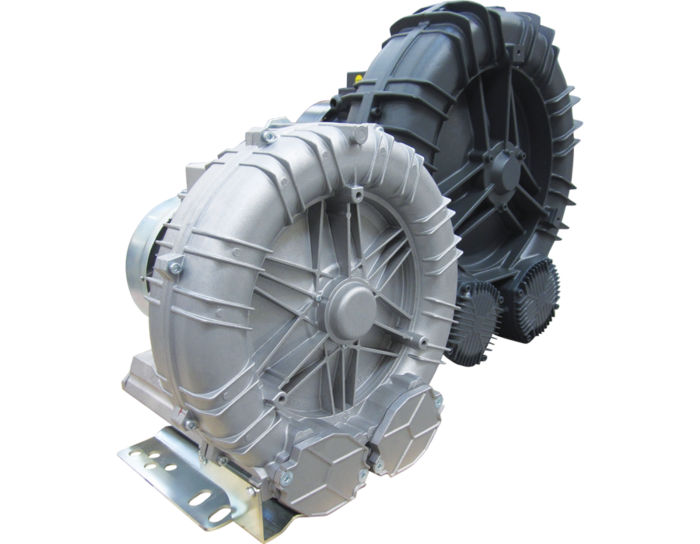

KMS_IMG_VariousSideChannelBlower
SLIDE510X339_0041
SLIDE510X339_0044
SLIDE510X339_0046
Product Features
  • Side channel blower for continuous high-vacuum operation
  • Efficient as vacuum pump for cleaning tasks
  • Max. vacuum: 35,000Pa
  • Max. air: 1,230m³/h
  • Can be mounted in two directions
  • May be used for 60Hz operation
  • Available in 6 different sizes
  • Can be equipped with safety valve
Further data
  • Side channel blower type KMS is intended for clean air transport.
  • Uses also the transport air as cooling air (may not be covered)
  • Can be equipped with safety valve/vacuum limiter.
  • The models K06-MS to K11-MS are delivered with IE2 motors as standard.
  • The model K12-MS is delivered with IE1 motor as standard.

Gram side channel blower type KMS are available in following sizes (all 3x400V):



TypekW (50Hz)kW (60Hz)
K 06-MS3,03,5
K 08-MS5,56,5
K 09,MS7,59,0
K 11-MS9,211,0
K 11-MS11,013,0
K 12-MS18,522,0





Further data, please see brochure page.
