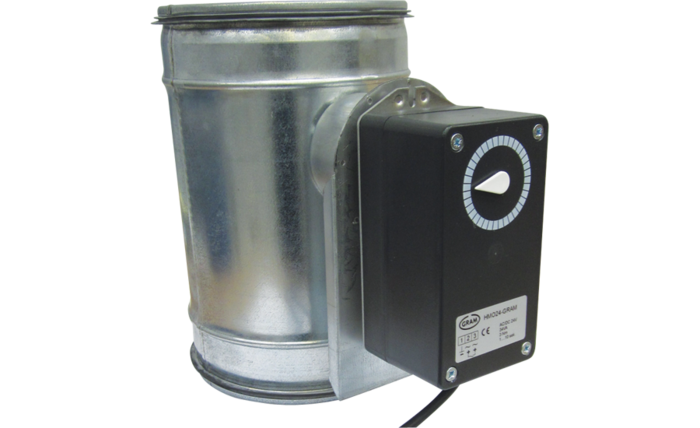

Damper motor HMO24-Gram

Damper motor HMO24-Gram is suitable for mounting on damper that must react very quickly, e.g. in connection with preocess extraction. Revolving time 1-10 seconds.

HMO24-Gram is applicable for turning Gram rotating damper. The motor is very silent, max. 45dB(A). Optional revolving area, e.g. continuous direction of rotation. Easily mounted on rotating damper by 2 screws

HMO_DSMG-HMO24-Gram
SLIDE510X339_0069
SLIDE510X339_0073
SLIDE510X339_0074
Product Features
  • High-speed damper motor
  • Very easy to mount
  • Converter 230VAC/24AC is available
  • HMO24-Gram is used together with Gram rotating damper, DSM-G
Product Highlights
HMO_HIGHLIGHT1
Damper motor type HMO24-Gram
HMO24-Gram
HMO_HIGHLIGHT2

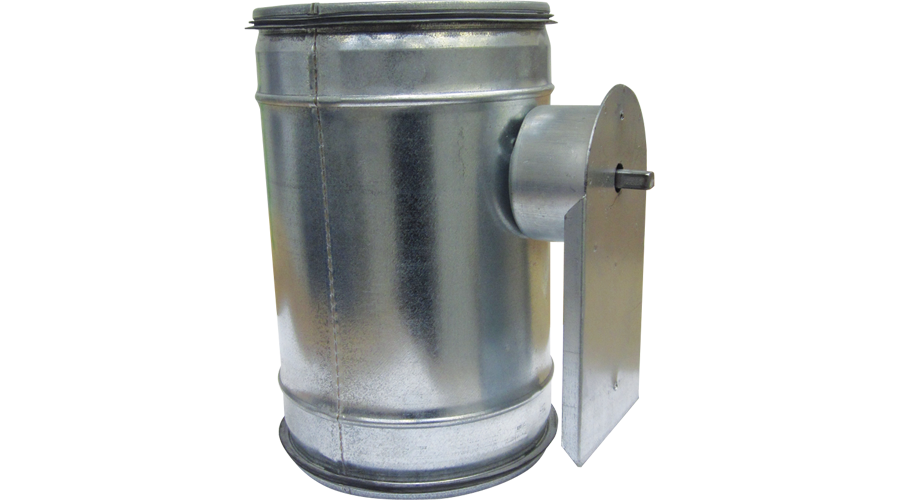

Rotating damper type DSM-G, ø80, ø100, ø125, ø160 and ø200mm
Rotating damper
HMO_HIGHLIGHT3

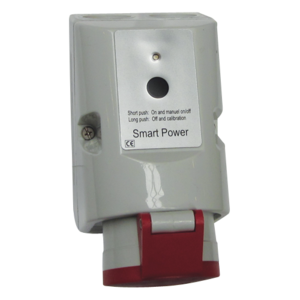

Power socket as signal device to damper motor
Power socket
HMO_HIGHLIGHT4

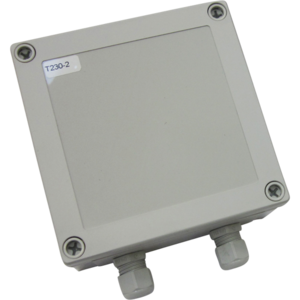

Converter type T320-2 is available
Converter
Further data

Damper motor type HMO24-Gramist characterized by being fast, which Means that it can obtain instant extraction when needed.

HMO24-Gram can be used together with Gram rotating damper in the following diameters:

ø80, ø100, ø125, ø160, ø200mm

Description
Working voltage:AC/DC 24V ± 10%
Output:17 W
Rating:34 VA
Connection:Cable 1m
Revolving moment:Min 3Nm
Revolving time:1 - 10 seconds in 4 steps / 90°
Revolving angle:90°
Revolving way:Adjustable with switch
Ambient temperature:0 - 50°C
Sound levelMax. 45dB (A)
