Smart Power Box SPB

Smart Power Box is used as start/stop-control of several dampers/machines by e.g. micro-switch/potential free switches.

Start/stop-control of damper and machines, from which a central central start/stop of motor controls, dampers and the like are required, which can be activated either potential fre, 24VDC or 230VAC.

SPB_SmartPowerBox

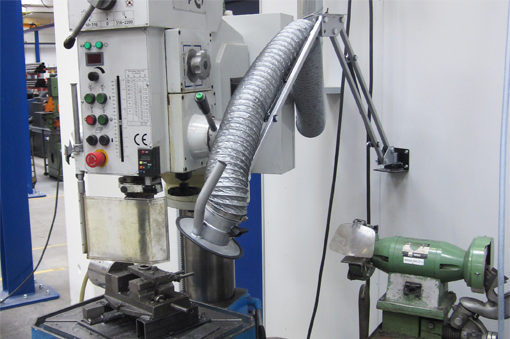

SLIDE510X339_0068

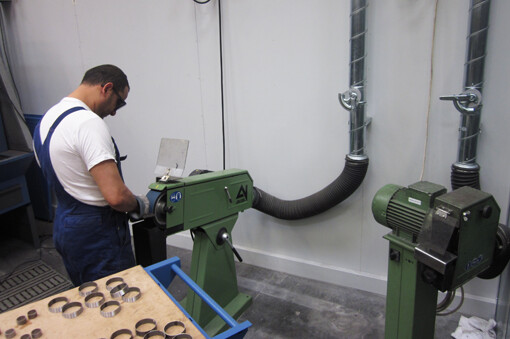

SLIDE510X339_0076
Product Features
  • Dependable component for start/stop-control
  • Integrated 230VAC/24VDC-transformer
  • Equipped with touch-folie and diode on front
  • After-run time: adjustable between 1 sec and 4 minutes
  • Max. load 400 Watt. Protected with 2 Amp relay
Further data

Smart Power Box SPB can be used as start/stop-control in connection with micro-switch/potential free switches on various dampers and machines, from which a central start/stop of motor control, dampers and the like are required, which can be activated either potential free, 24VDC or 230VAC.

Control can be overrided by pushbutton on folie-front.

If Smart Power Box SPB is activated on button or momentarily externally, it will disconnect after 30 min.

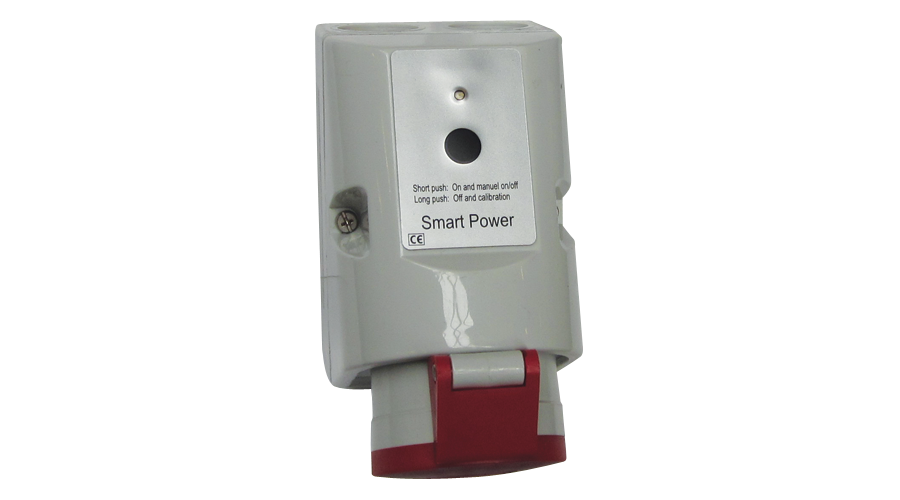

SPB_SmartPowerPowerSocket
Power socket with direct connection to welder.
Technical data:
Protection rating:IP65
Supply voltage:230V AC
After-run time:Adjustable between 1 sec. and approx. 4 min.
Relay exit:Double close. Single break. Potential free. Max laod250 V 5A
Permanent 230 V exit:Max. load 400 watt. Protected by 2 Amp. relay
Order no.09 181 000
